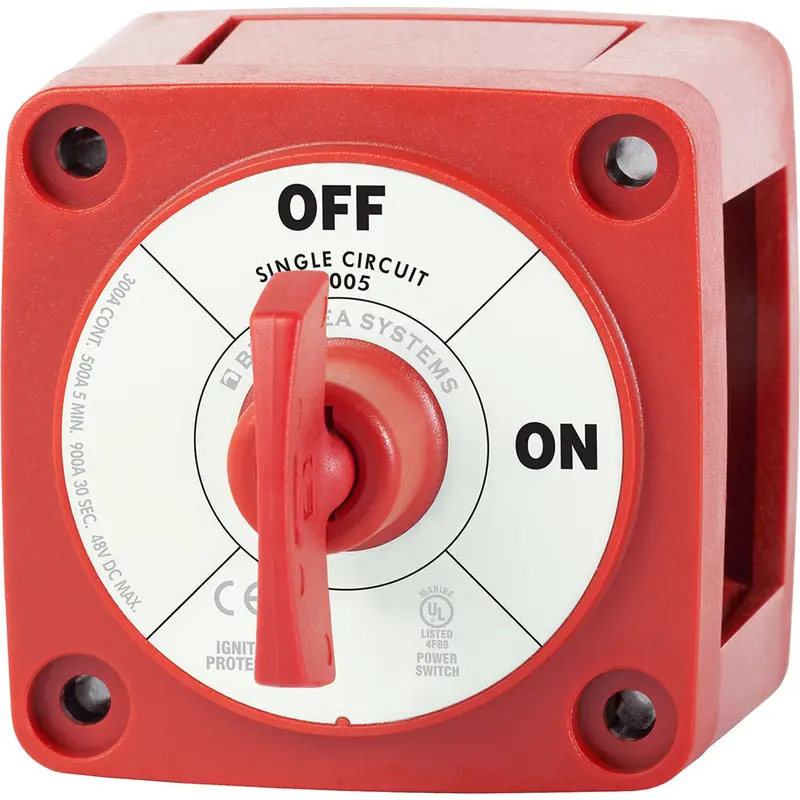

Blue Sea Systems 6005 M-Series Mini Battery Switch — Single-Circuit On/Off

Description

6005
m-Series (Mini) Battery Switch
Single Circuit ON/OFF

• Switches a single battery to a single load group
• Multiple switches can be used to manage several isolated circuits including cross connecting for emergency paralleling

Features:

• Ignition protected – Safe for installation aboard gasoline powered boats
• Case design allows surface, front panel, or rear panel mounting
• Isolating cover with snap-on sections protects rear contacts
• 3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
• 7/8″ (22.22mm) stud length to accept multiple cable terminals
• Ideal for marine or RV applications
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• Tactile textures indicate knob position by feel only
• Label with international ON/OFF legends
• Removable key or knob remains positively retained
• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 1
• Lockable: Yes
• Continuous Amperage: 700a
• Box Dimensions: 3″H x 4″W x 7″L WT: 0.6 lbs
• UPC: 632085060053

Owner’s Manual (pdf)
