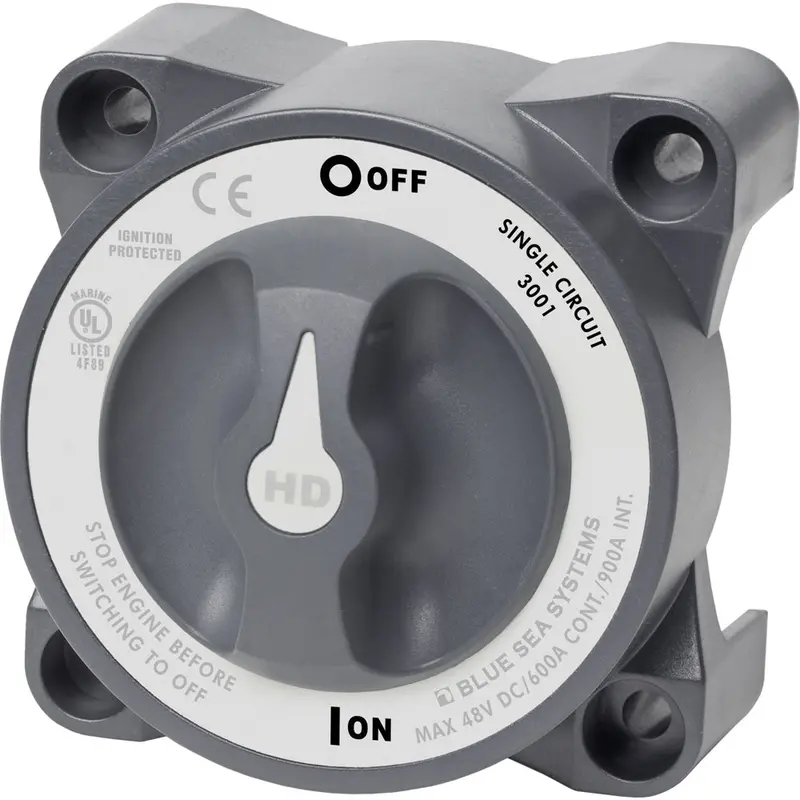

Blue Sea Systems 3001 Hd-Series Battery Switch With Alternator Field Disconnect

Description

3001 HD-Series Battery Switch Single Circuit ON/OFF with AFD

Features:

• 600 Ampere Continuous Rating
• Accepts two 4/0 battery cables per terminal
• Ignition protected – safe for installation aboard gasoline powered boats
• .870″ (22.01mm) stud length to accept multiple cable terminals
• 1/2″ (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Tactile textures indicate knob position by feel only
• Case design allows surface or rear panel mounting
• Fits all Perko and Guest low amperage battery switch hole patterns


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Positions: 2
• AFD: Yes
• Continuous Amperage: 900a
• Box Dimensions: 3″H x 7″W x 9″L WT: 1.3 lbs
• UPC: 632085030018

Owner’s Manual (pdf)
